Product Series：AFS Bolt-in Fuse-link
Product Name： AFS
Product Number：AFS Bolt-in Fuse-link
Product Description：

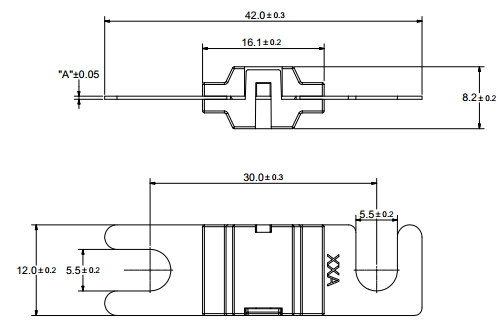

BOLT-ON FUSES
Time-Current Characteristics
Test Current
Opening Time
30 A ~ 125 A
Opening Time
150 A
Min.
Min.
Max.
Max.
75%
---
---
100 hrs.
---
100%
100 hrs.
---
---
---
110%
4 hrs.
---
---
---
150%
90 s
3600 s
---
---
200%
3 s
100 s
1 s
15 s
300%
0.3 s
3 s
---
---
350%
---
---
0.3 s
5 s
500%
0.1 s
1 s
---
---
600%
---
---
0.1 s
1 s
Item No.
Ampere
Color
For OEM
For AML
AFS 30
30 A
Black
AFS 40
40 A
AFS 50
50 A
AFS 60
60 A
AFS 70
70 A
AFS 80
80 A
AFS 100
100 A
AFS 125
125 A
AFS 150
150 A
◎ Slow-Blow
◎ Voltage Rating : DC32V or less
◎ Interrupting Rating: 2000A @32VDC
◎ Operating Temperature Range:
-40℃ to +125℃
◎ Complies with ISO 8820-5
◎ Materials : 1.Copper Alloy with Tin Plated
2. Nylon With Glass Fiber / PSU
