Product Description：

Product Description:
General purpose cartridge fuse-links of current ratings not exceeding 13A for domestic and similar
purpose (primarily for use in plugs complying with the requirements of BS1363) on declared supply
voltages not exceeding 240V at a nominal frequency of 50Hz or 60Hz.

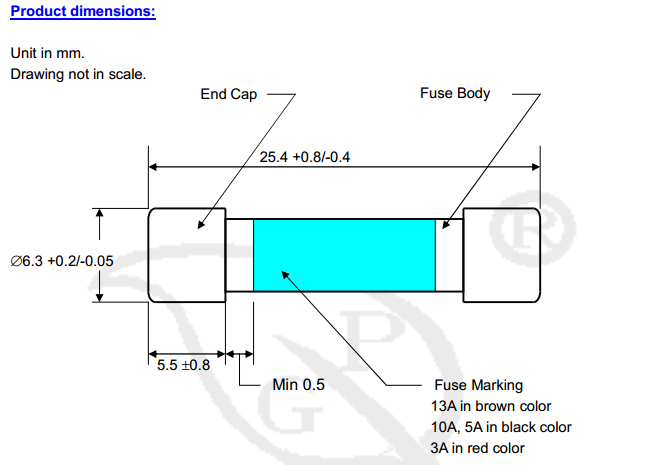

Dimensions: 6.3mm X 25.4mm

Construction:
Electroplated end caps substantially co-axial with a ceramic barrel. Sand filling is required inside of
the body.
Frequency: 45Hz to 62Hz
Breaking Capacity Rating: 6,000A / 240V
Power Loss Rating: The rated power loss shall not exceed one watt when carrying rated current.

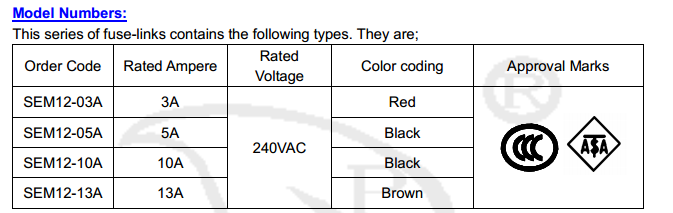

Color: The fuse barrel shall be marked in red for 3A and brown for 13A. 5A and 10A shall be in
black
